Tire Curing Press of Shyr Chiuann Tyre Curing Presses

Product Description

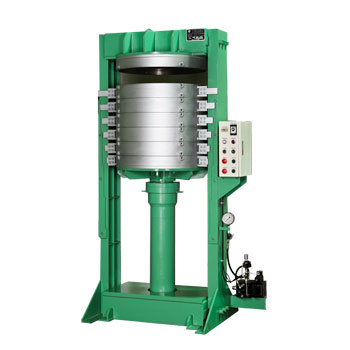

Tire Curing Press

Tyre Curing Press with special design, 10" C Type Steel Column Main Structure, its stiffness is higher than traditional 4 cylinder ones.
Special design, Hydraulic Cylinder, the speed of up-down is faster than others. The timing can be shortening per cycle curing process.
Tyre Curing Press Machine equips with diameter 190mm of hydraulic cylinder shaft. The maximum clamping force is up to 50 tons. Working clamping force is up to 35 tons.
The number of curing cell can be 5 to 6 cells. Customers can decide the proper cells for their needs.

Product Specifications

	SC-OTCP-MT-6L-BC-D2028	SC-OTCP-MT-5L-MC-D1621
Applied Tire	Bicycle Tire 20" ~ 28"	Motorcycle Tire 16"~21"
Curing Cell	6 Curing Cells	5 Curing Cells
Main Structure	10” C Type Steel Column Structure	10” C Type Steel Column Structure
Curing Cell Outer Diameter	Ø800 mm	Ø760 mm
Curing Cell Inner Diameter	Ø200 mm	Ø200 mm
Interval Between Curing Cells	160 mm	250 mm
Hydraulic Cylinder Outer Pipe	Ø215^O.D.mm × Ø175^I.D.mm × 1010^Lengthmm	Ø230^O.D.mm × Ø175^I.D.mm × 1250^Lengthmm
Hydraulic Cylinder Shaft	Ø175 mm	Ø190 mm
