Product Description

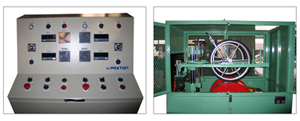

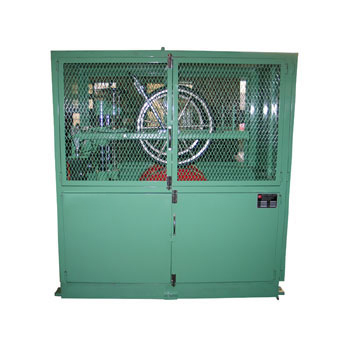

- Two motors, Two flywheels, and Two tires independent testing system design. Bicycle Tire Drum Testing Machine is able to test 2 different specifications of tires at the same time. Users can set up different testing conditions for each testing station. Such as running mileage, running speed and tire loading.
- Bicycle Tire Drum Testing Machine equips 2 types of tire rims. Customers can decide what specifications of tire rims for their needs.
- Functional design, Tire Broken Automatic Detector, is accurate to record all the related data while tire is broken.
- Road jumping bar, is set up at the flywheel, is stimulating the real road conditions.
Product Specifications
 | SC-TDTM-BC-1A |
|---|---|
| Tire Type | BC 8” ~ 28” |
| Tire Test Speed | 0 ~ 85 km/hr ± 1% |
| Tire Test Load | 0 ~ 120 kgf |
| Tire Test Station | Twin Side Type Test Stations |
| Tire Test Roadwheel | Ø760 O.D. mm × 125 Width mm |
| Roadwheel Motor | 3 HP DC Motor |
| Tire Test Loading Type | Dead Weight Loading Type |
| Compressed Air Pressure | 6 ~ 7 kgf/cm2 |
| Tire Test Shock Bar | 125 Length mm × 10 Width mm × 5 Height mm × 2 PCS |
| Overall Dimensions | 1770 Length mm × 1900 Width mm × 1090 Height mm |
| Net Weight | 1506 kgw ( Include Control Plane 90 kgw) |
| Rim Type | Equips with 3 PCS of Tire Rim ( The customer choose specifications ) |
This is the detailed information for Bicycle Tire Drum Testing Machine. The information includes model, name, description and specification for Bicycle Tire Drum Testing Machine. Related Keywords : Tire Testing Equipment, Tire Drum Testing Machine, Bicycle Tire Drum Testing Machine, Tire Testing Machine, Tire Drum Testing Equipment, Bicycle Tire Drum Testing Equipment, Bicycle Tire Testing Machine, Bicycle Tire Tester, Bicycle Tire Tester, Tire Testing Machine. Please send your Inquiries for Bicycle Tire Drum Testing Machine to us. We will contact you soon. Please also check out the related product categories below.
 |
 |
