Product Description

It is applied for mold specification bicycle ≥20"; Motorcycle ; passenger 6.00-13~6.50-14(inch)
2 stages of mold open-close speed design expends the lifetime of mold by avoiding direct hitting mold and ensure the quality of tube after curing.
Special design, Internal Junction Structure, is available for platen use and not use base on customers?need.
Special design, Drill Platen, applied equal heating to maintain high quality of tube. Also, it helps customers to save money for the future mold consumption.
Machine with its patent silicone o-ring is capable of expending the lifetime of mold and avoiding damaging the surface of tube. Also, it can save energy consumption of air compress and steam.
Machine with its patent silicone o-ring is capable of use for 2~3 years under the normal working condition. It only costs you less money for the long-term consumption.
Machine body, FC 35 Casting, has 10 years guarantee under the normal working condition.
Circuit Board, Piston Valve, Electromagnetic Vale, Steam Trap, Heat Insulation Platen have one year guarantee under the normal working condition.
PLC Control Center Panel can be optional.

Product Specifications

	Overall Dimension ( mm )	Mold Dimension ( mm )	Mold Specification ( Inch )	Bolt of Upper Mold ( mm )	Air Pressure	Net Weight
SC-ITCP-DHT-L1A	2650^L×2200^W×1900^H	Ø1495^OD×Ø380^ID×470^H ~ 500^H	8.25-20 ~ 16.00-30	1100^PCD× Ø35×4 810^PCD×Ø35×4	5~8 kgf/cm²	6180 kgw
No. L1	2650^L×2200^W×1900^H	Ø1495^OD×Ø380^ID×470^H ~ 500^H	8.25-20 ~ 16.00-30	1100^PCD× Ø35×4 810^PCD×Ø35×4		6180 kgw
SC-ITCP-DHT-1A	2300^L×1700^W×1800^H	Ø1195^OD×Ø380^ID ×320^H ~ 340^H	7.50-15 ~ 12.00-20	810^PCD×Ø35×4		3750 kgw
No. 1	2300^L×1700^W×1800^H	Ø1195^OD×Ø380^ID ×320^H ~ 340^H	7.50-15 ~ 12.00-20	810^PCD×Ø35×4		3750 kgw
SC-ITCP-DHT-2A	1820^L×1260^W×1560^H	Ø890^OD×Ø255^ID ×255^H ~ 280^H	6.00-13 ~ 8.25-16	560^PCD×Ø35×4		2000 kgw
No. 2	1820^L×1260^W×1560^H	Ø890^OD×Ø255^ID ×255^H ~ 280^H	6.00-13 ~ 8.25-16	560^PCD×Ø35×4		2000 kgw
SC-ITCP-DHT-3A	1300^L×1080^W×1300^H	Ø785^OD×Ø100^ID ×170^H ~ 200^H	Bicycle：≧20" Motorcycle：≧12" Passenger：6.00-13 ~ 6.50-14	560^PCD× Ø25×4 408^PCD×Ø25×4		1080 kgw
No. 3	1300^L×1080^W×1300^H	Ø785^OD×Ø100^ID ×170^H ~ 200^H	Bicycle：≧20" Motorcycle：≧12" Passenger：6.00-13 ~ 6.50-14	560^PCD× Ø25×4 408^PCD×Ø25×4		1080 kgw
SC-ITCP-DHT-5A	1200^L×960^W×1250^H	Ø645^OD×Ø100^ID ×170^H ~ 200^H	Bicycle：20" ~ 24" ID：6.00-12	560^PCD×Ø25×4 408^PCD×Ø25×4 300^PCD× Ø25×4		1000 kgw
No. 5	1200^L×960^W×1250^H	Ø645^OD×Ø100^ID ×170^H ~ 200^H	Bicycle：20" ~ 24" ID：6.00-12	560^PCD×Ø25×4 408^PCD×Ø25×4 300^PCD× Ø25×4		1000 kgw
SC-ITCP-DHT-6A	1100^L×900^W×1300^H	Ø585^OD× Ø60^ID ×170^H ~ 200^H	Bicycle：≦20" ID：2.00-4 ~ 5.00-12	408^PCD×Ø20×4		720 kgw
No. 6	1100^L×900^W×1300^H	Ø585^OD× Ø60^ID ×170^H ~ 200^H	Bicycle：≦20" ID：2.00-4 ~ 5.00-12	408^PCD×Ø20×4		720 kgw

This is the detailed information for Tube Curing Press, NO.3. The information includes model, name, description and specification for Tube Curing Press, NO.3. Related Keywords : Tube Curing Press, Tube Curing Press Machine, Tube Curing machine, Tube Curing Equipment, Tube Making Equipment, Tube Making Machine, Tube Curing machines, Tube Making Machines, Tube Curing Press Manufacturer, Tube Making Equipment Manufacturer, Tube Making Equipment Supplier. Please send your inquiries for Tube Curing Press to us. We will contact you soon. Please also check out the related product categories below.

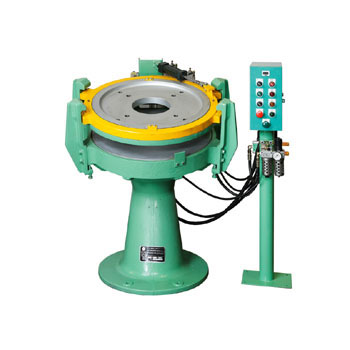

Tube Curing Press NO.3
