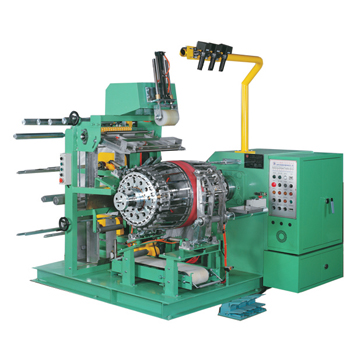

Product Description
- Automatic Bicycle Tyre Building Machines with three stages expand/contract forming drum design enables quicker production and higher quality of high end tire.
- Automatic Bicycle Tyre Building Machinery with special design, Slide Roller Expand type Building Drum, is capable of precision and long time uses without any abrasion.
- Special design, 2 Sides of Finger Turn Up Type (one side: 36 pieces, total: 72 pieces), ensures not to change angle of nylon cord by smooth turn up process, in order to build up high quality of the tire.
- The building drum design is available for no gap silicone band and with gap one for customization.
- Opposite spliced position of nylon cord and tread design enables better dynamic tire balance.
- Pasting tread design makes tread pastes more efficiently and tightly.
- Special design, Patented Tread Truing Holder, raises product quality and increases output while decreasing dual color processing. Yields symmetrically balanced stable tires.
- Special design, Bead Setting Ring with Strong Magnets, enables the bead wire is held back to the right position exactly and fast.
- To equip with tread guider enables the tread align to the center of the drum for every revaluation tread apply accurately and rapidly.
- Special design, Patent Lip rolling mill, forces out any bubbles between layers to lead to a stronger bond and maximizing vulcanization quality.
- Newly designed 2 oil seals, can be replace in 20 minutes at the tail end of the spindle (traditional one: 8 oil seals, 4 hours). Also, the overall spindle horsepower is comparatively more stable.
Product Specifications
 | SC-TBM-FT-1218A | SC-TBM-FT-2022A | SC-TBM-FT-2428A |
|---|---|---|---|
| Tire Type | Bicycle Tire | ||
| Tire Size Applicable | 121/2” ~ 18” | 20” ~ 22” | 24” ~ 28” |
| Layers of Nylon Cord | 1 PLY Center Overlap Type | ||
| Cord Width (Max.) | 400 mm | ||
| Cord Fabric Roll Diameter (Max.) | Ø500 mm | ||
| Liner Cloth Width (Max.) | 500 mm | ||
| Liner Cloth Roll Diameter (Max.) | Ø300 mm | ||
| Tread Width (Max.) | 160 mm | ||
| Tread Roll Diameter (Max.) | Ø500 mm | ||
| Revolution of Drum | 60 RPM | ||
| Under Stitcher Type | Rubber Profile Rolling Type | ||
| Main Drive Motor | 3-Phase Induction Motor 2 HP × 6P Gear Reducer 2 HP × 1/20 |
||
| Under Stitcher Cylinder | Ø40 mm × ST. 300 mm | ||
| Ply Servicer Motor | Gear Reducer 1/4 HP × 6P × 1/8.4 ~ 1/1.4 | ||
| Tread Servicer Motor | Gear Reducer 1/2 HP × 4P × 1/5 | ||
| Compressed Air Pressure | 7 kgf/cm 2 | ||
| Power Supply | AC 220/380V × 50/60Hz × 3Ø | ||
| Overall Dimension | 2530 mmLength × 2570 mmWidth × 2040 mmHeight | ||
| Net Weight | 1850 kgw | ||
| Tire Building Speed | 100 ~ 120 PCS / Hr | 90 ~ 110 PCS / Hr | 80 ~ 100 PCS / Hr |
